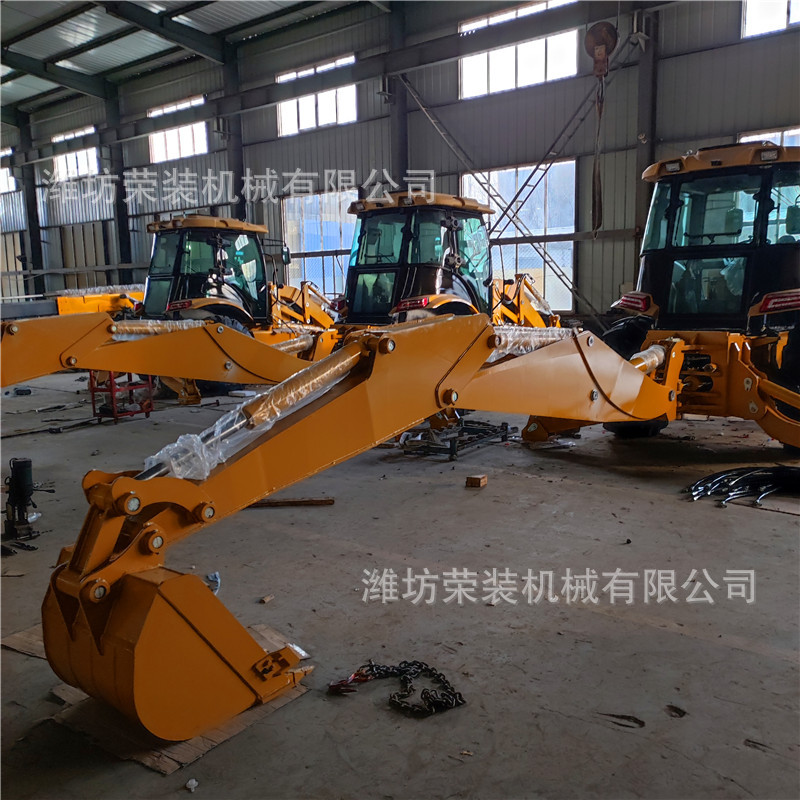

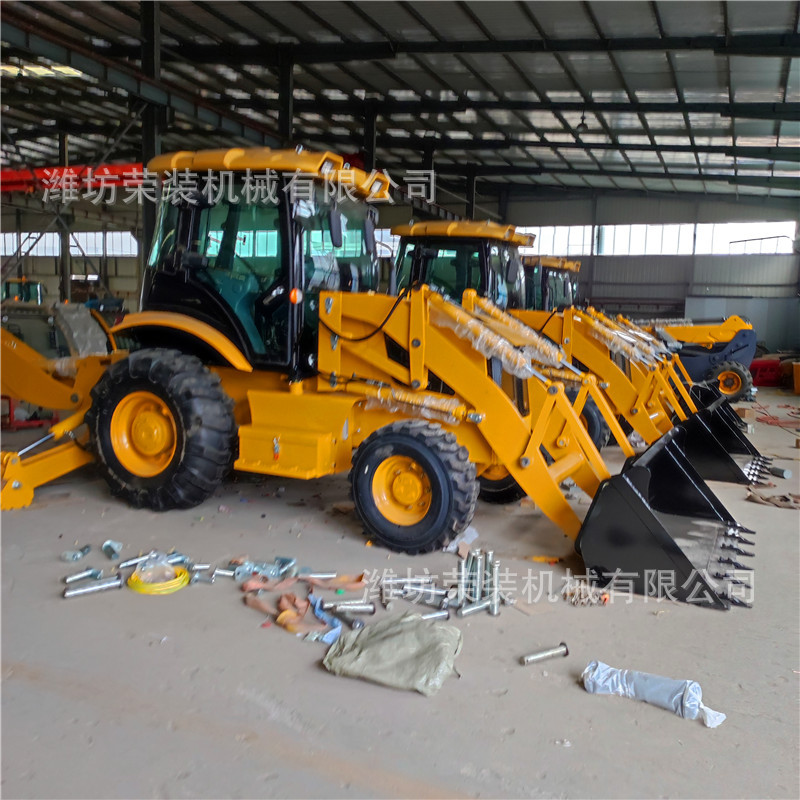

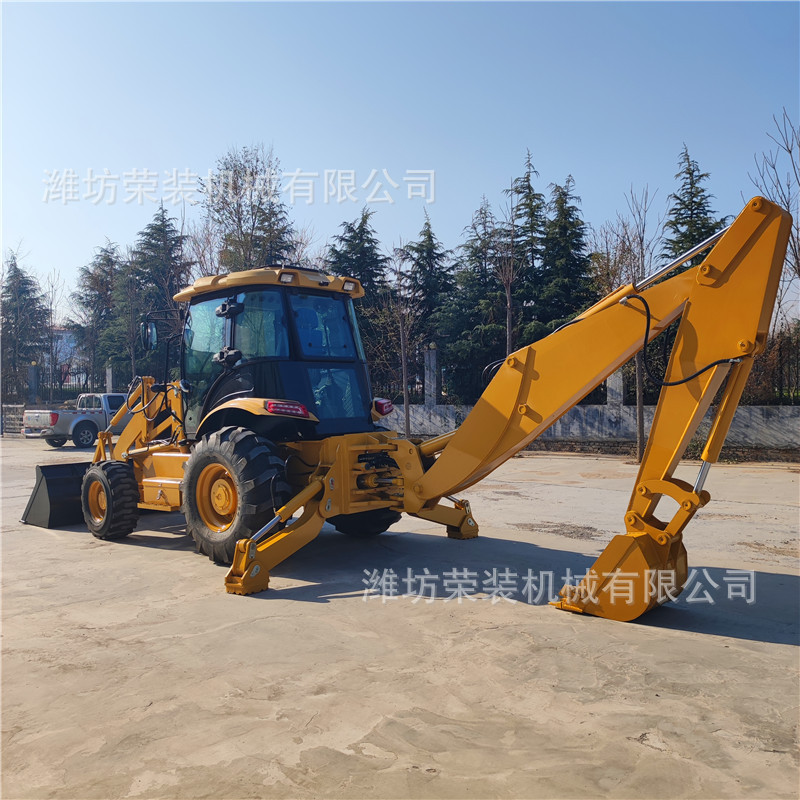

he main structural features and advanced technology used in the SAM388 Backhoe loader
一、主要特点：main feature
1.采用高可靠性的液力变矩器和变速箱提供超强动力，加重工程专用桥行走平稳、可靠性高。The use of high-reliability hydraulic torque converter and Gearbox to provide super power, aggravated the smooth and high reliability of the dedicated bridge walking
2.将挖掘机和装载机两机合为一体，一机多能。完全具备小型挖掘机和装载机的所有功能，更适合在狭窄空间作业，方便灵活，工作效率提高30%以上。Combine the excavator and the loader into one, and one machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30 %.
3.挖掘、装载功能全部先导控制，轻便灵活，作业效率高。Mining, loading function all lead control, light and flexible, high operating efficiency.
4.人性化设计旋转减振座椅，全钢化成型玻璃驾驶室，视野更宽阔，驾驶更舒适。Humanized design of rotating vibration absorber seat, fully steel-molded glass cab, wider vision, more comfortable driving.
5.挖掘可侧向滑移机构装置，使挖掘作业范围更大，效率更高。Excavate the lateral sliding mechanism device to make the excavation operation more extensive and more efficient.
6.前翻式护罩的设计，大大提高了整机的维护性。The design of the front flip cover greatly improves the maintenance of the entire machine.
7.可选配多种附具装置，完成多种施工作业。用于市政、建筑、水利、公路、自来水、供电、园林等部门，可从事农业建筑，管道铺设，电缆敷设，园林绿化等作业。A variety of accessories can be selected to complete a variety of construction operations. For use in municipal administration, construction, water Conservancy, highways, tap water, power supply, gardens and other departments, can be engaged in agricultural construction, pipeline laying, cable laying, landscaping and other operations
|
二、RZ388技术参数 The Main Performance Parameter of Backhoe Loader RZ388
|
||||
|
整机操作重量Overall Operating Weight |
8200KG |
轮边减速型式Final Reducer |
一级轮边减速Single Stage Final Reducer |
|
|
运输尺寸Transport Dimension |
额定桥载荷Rated Loader of Axle |
8/18.5t |
||
|
长×宽×高mm L*W*H |
6120×2410×3763 |
|
|
|
|
驾驶室到地面高度cab to groundmm |
2900mm |
传动系统Transmission System |
||
|
轴距 Wheel base |
2248mm |
变矩器Torque Converter |
||
|
最小离地间隙 Min. Ground Clearance |
300mm |
型号Model |
YJ280 |
|
|
装载斗容 Bucket Capacity |
1.0m3 |
型式Type |
单级、单相三元件Single-stage Three Elements |
|
|
掘起力Breakout Force |
38KN |
最高效率Max. Efficiency |
84.4% |
|
|
装载举升能力Loading Lifting Capacity |
2500KG |
变速箱Gearbox |
||
|
铲斗卸载高度Bucket Dumping Height |
2700mm |
型式Type |
定轴式动力换档Fixed Shaft Power Transmission |
|
|
铲斗卸载距离Bucket Dumping Distance |
925mm |
离合器操纵油压Oil Pressure of Clutch |
1373Kpa—1569 Kpa |
|
|
铲挖深度 Digging Depth |
52mm |
档位数Gears |
前进2档，后退2档Two Gears Ahead, Two Gears Astern |
|
|
反铲斗容Backhoe Capacity |
0.3 m3 |
最高车速Max.Speed |
28Km/h |
|
|
最大挖掘深度Max. Digging Depth |
4082/4500mm |
轮胎Tyre |
||
|
挖斗回转角Swing Angle of Excavator Grab |
190o |
规格Model |
14-17.5/19.5L-24 |
|
|
最大牵引力Max. Pulling Force |
39KN |
前轮气压Pressure of Front wheel |
0.55Mpa |
|
|
发动机Engine |
后轮气压Pressure of Back Wheel |
0.223Mpa |
||
|
型号Model |
CYD YC4A105Z-T20 |
制动系统Brake System |
||
|
型式Type |
直列、直喷、四冲程、直喷燃烧室In Line Direct injection Four-Stroke and Injection Combustion Chamber |
驻车/紧急制动Emergency Brake |
操纵力实施制动Operation Power Implementing brake |
|
|
气缸数-内径*行程Cylinder-Inside Diameter*Stroke |
4-108×132 |
手操纵力解除制动Manual Operation Power Terminating Brake |
||
|
额定功率Rated Power |
75KW |
行车制动Service Brake |
气顶油钳盘制动Air Over Oil Caliper Brake |
|
|
额定转速Rated Speed |
2200r/min |
外置式External Type |
||
|
最低燃油率Min. Fuel Consumption |
≤230g/km.h |
自调节Self-regulation |
||
|
最大扭矩Max.Torque |
≥400N.M |
自平衡Self-balance |
||
|
排量Displacement |
4.837L |
液压系统Hydraulic System |
||
|
转向系统Steering System |
挖斗挖掘力Digging Power of Excavator Grab |
46.5KN |
||
|
转向器型号Model of Steering Device |
BZZ5-250 |
斗杆挖掘力Digging Power of Dipper |
44KN |
|
|
转向角Steering Angle |
±36 o |
铲斗提升时间Bucket Lifting Time |
6．8S |
|
|
最小转弯半径Min. turning radius |
6581mm |
铲斗下降时间Bucket Lowering Time |
3.1S |
|
|
系统压力Pressure of the system |
16Mpa |
铲斗卸载时间Bucket Discharge Time |
2.0S |
|
|
驱动桥Axle |
|
|
||
|
生产厂家Manufacturer |
肥城Feicheng |
主传动型式Main Transmission Type |
双级减速式Double Reduction |
|
